Music with XWE (Extendable Wad Editor)

How can I insert my own music into my doom2 pwad?

If you use a source port, you may insert .mus, .mid, .mp3, .ogg files.
If you want to have a compatibility with original doom, use only .mus file format.
Here is a short tutorial of using midi2mus program.

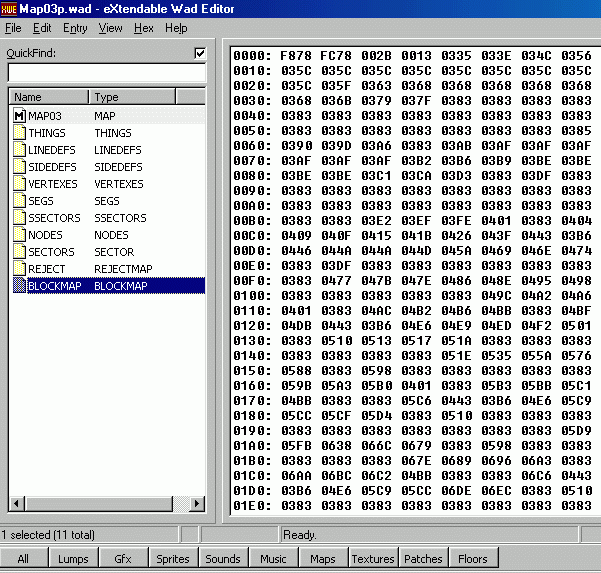

Open your pwad with XWE. Select the "blockmap" entry.

(It is the last map data lump and the music lump will be inserted after it):

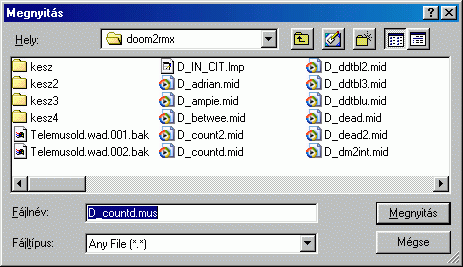

Then choose from "Entry" menu "Load". Click on the .mus file you want to use.

Then select this entry and choose from "Entry" menu the "Rename" function.

You have done it.

The names you have to use (it is the most important):
Map No: Doom music entry name
Map01: d_runnin
Map02: d_stalks
Map03: d_countd
MAP04: d_betwee
Map05: d_doom
Map06: d_the_da
Map07: d_shawn
Map08: d_ddtblu
Map09: d_in_cit
Map10: d_dead
Map11: d_stlks2
Map12: d_theda2
Map13: d_doom2
Map14: d_ddtbl2
Map15: d_runni2
Map16: d_dead2
Map17: d_stlks3
Map18: d_romero
Map19: d_shawn2
Map20: d_messag
Map21: d_count2
Map22: d_ddtbl3
Map23: d_ampie
Map24: d_theda3
Map25: d_adrian
Map26: d_messg2
Map27: d_romer2
Map28: d_tense
Map29: d_shawn3
Map30: d_openin
Map31: d_evil
Map32: d_ultima

Title Music: d_dm2ttl
Intermission music: d_dm2int
End Game Music: d_read_m

Another typ: rename files with Windows before you open XWE, so you can omit renaming.

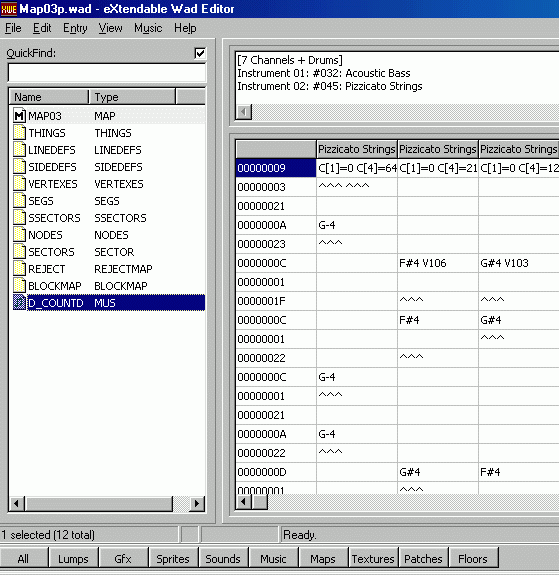

You can see in my example, that the mus file has a correct name, so renaming is not needed.

I remixed Doom2 music. I Did not modified any notes, only the pans and the music instruments were set. In my file d_shawn, d_shawn2, etc. now sounds different, not like in doom2. I use it not only for doom2, but to kill the ugly music songs of some pwads.
